设计模式-抽象工厂 2022-02-15

抽象工厂模式(Abstract Factory Pattern)是一种创建型设计模式，它能创建一系列相关的对象，而无需指定其具体类。

解释

---

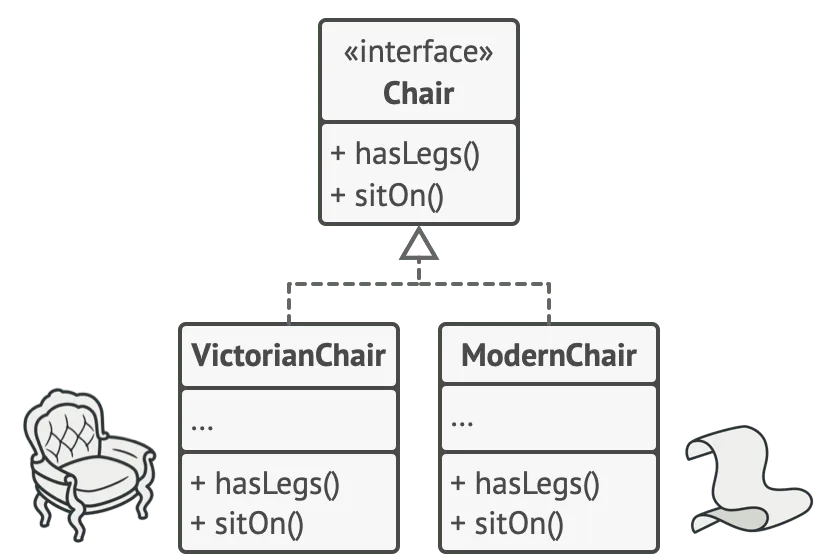

抽象工厂模式建议为系列中的每件产品明确声明接口，然后确保所有产品变体都继承这些接口。

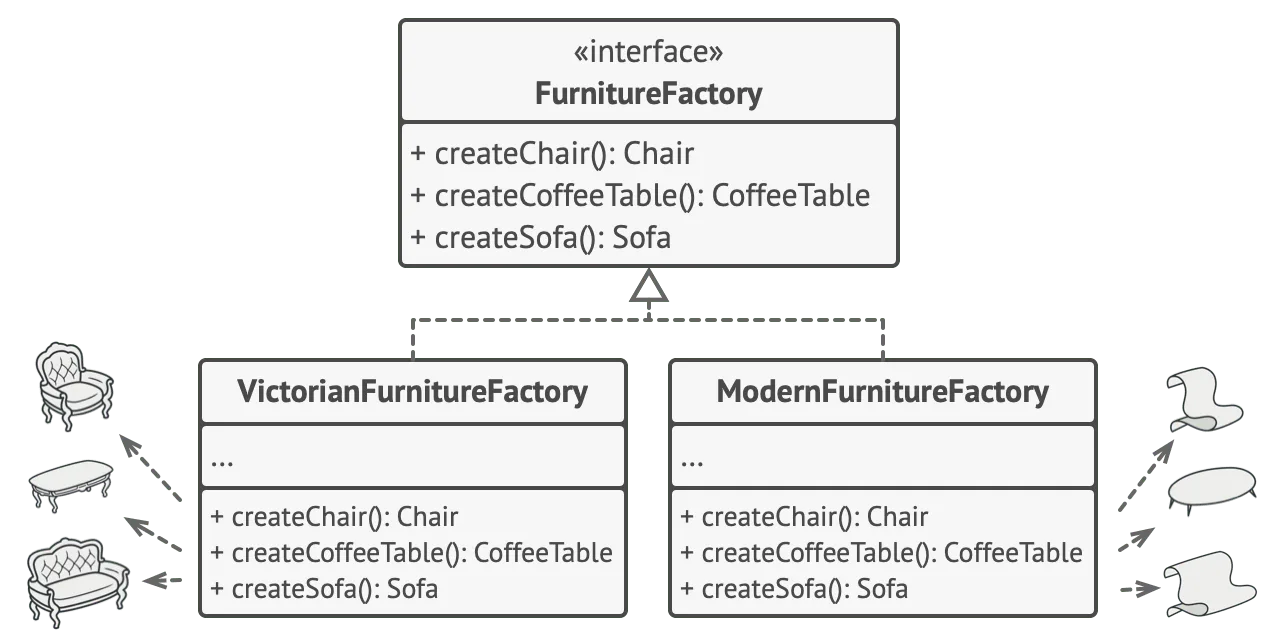

接下来，我们需要声明抽象工厂，该类中包含系列中所有产品构造方法的接口。

对于系列产品的每个变体，我们都将基于抽象工厂接口创建不同的工厂类，每个工厂类都只能返回特定类别的产品。

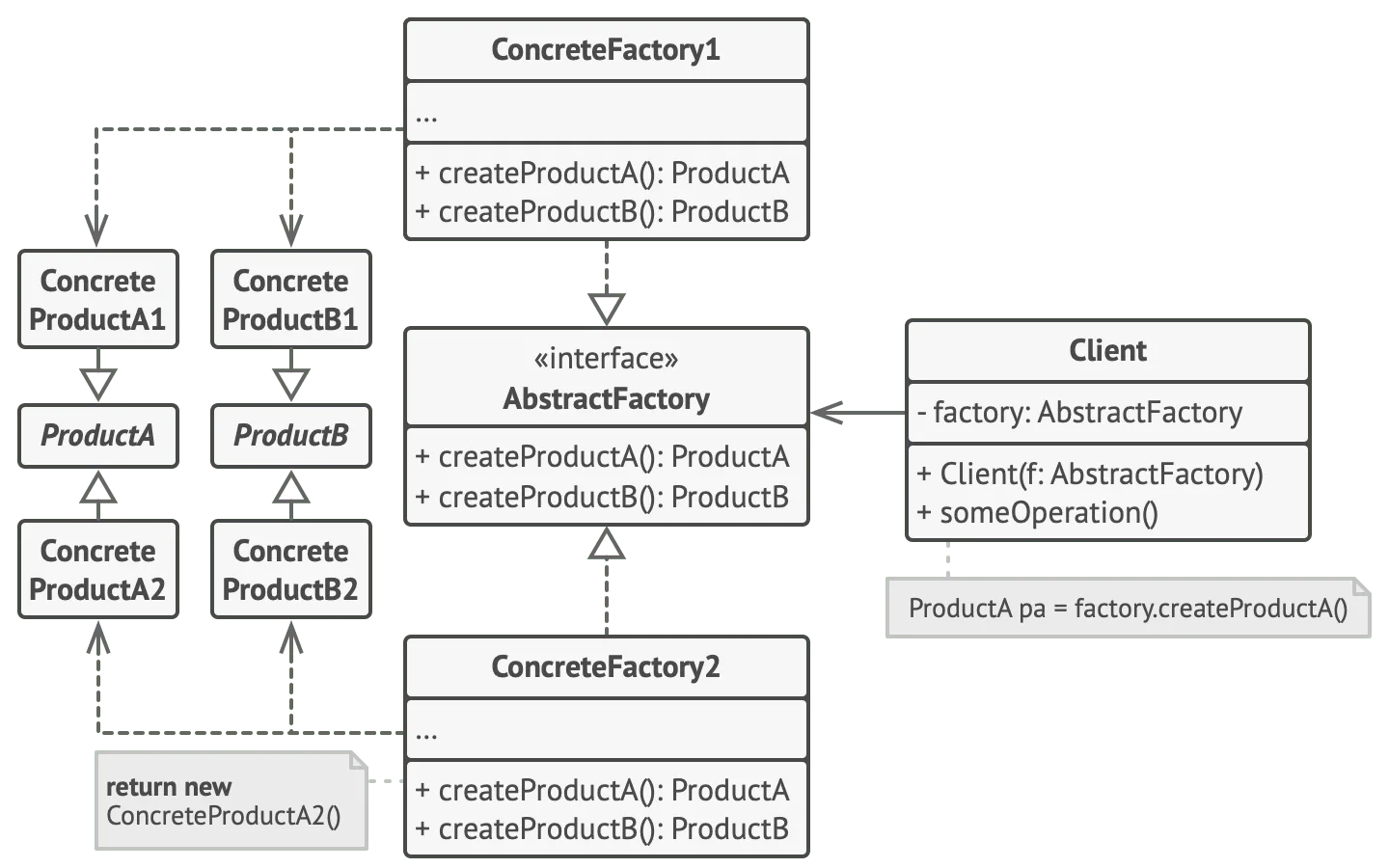

抽象工厂模式 UML

---

适用场景

---

1. 如果代码需要与多个不同系列的相关产品交互，但是由于无法提前获取相关信息，或者出于对未来扩展性的考虑，你不希望代码基于产品的具体类进行构建，在这种情况下，你可以使用抽象工厂
2. 如果你有一个基于一组抽象方法的类，且其主要功能因此变得不明确，那么在这种情况下可以考虑使用抽象工厂模式

代码示例

---

using System;
namespace AbstractFactoryPatternDemo
{
    // abstract factory
    public interface IAbstractFactory
    {
        IAbstractProductA CreateProductA();

        IAbstractProductB CreateProductB();
    }

    class ConcreteFactory1 : IAbstractFactory
    {
        public IAbstractProductA CreateProductA()
        {
            return new ConcreteProductA1();
        }

        public IAbstractProductB CreateProductB()
        {
            return new ConcreteProductB1();
        }
    }

    class ConcreteFactory2 : IAbstractFactory
    {
        public IAbstractProductA CreateProductA()
        {
            return new ConcreteProductA2();
        }

        public IAbstractProductB CreateProductB()
        {
            return new ConcreteProductB2();
        }
    }

    // abstract product a
    public interface IAbstractProductA
    {
        string UsefulFunctionA();
    }

    class ConcreteProductA1 : IAbstractProductA
    {
        public string UsefulFunctionA()
        {
            return "The result of the product A1.";
        }
    }

    class ConcreteProductA2 : IAbstractProductA
    {
        public string UsefulFunctionA()
        {
            return "The result of the product A2.";
        }
    }

    // abstract product b
    public interface IAbstractProductB
    {
        string UsefulFunctionB();

        string AnotherUsefulFunctionB(IAbstractProductA collaborator);
    }

    class ConcreteProductB1 : IAbstractProductB
    {
        public string UsefulFunctionB()
        {
            return "The result of the product B1.";
        }

        public string AnotherUsefulFunctionB(IAbstractProductA collaborator)
        {
            var result = collaborator.UsefulFunctionA();

            return $"The result of the B1 collaborating with the ({result})";
        }
    }

    class ConcreteProductB2 : IAbstractProductB
    {
        public string UsefulFunctionB()
        {
            return "The result of the product B2.";
        }

        public string AnotherUsefulFunctionB(IAbstractProductA collaborator)
        {
            var result = collaborator.UsefulFunctionA();

            return $"The result of the B2 collaborating with the ({result})";
        }
    }

    // client
    class Client
    {
        public void Main()
        {

            Console.WriteLine("Client: Testing client code with the first factory type...");
            ClientMethod(new ConcreteFactory1());
            Console.WriteLine();

            Console.WriteLine("Client: Testing the same client code with the second factory type...");
            ClientMethod(new ConcreteFactory2());
        }

        public void ClientMethod(IAbstractFactory factory)
        {
            var productA = factory.CreateProductA();
            var productB = factory.CreateProductB();

            Console.WriteLine(productB.UsefulFunctionB());
            Console.WriteLine(productB.AnotherUsefulFunctionB(productA));
        }
    }

    // program
    class Program
    {
        static void Main(string[] args)
        {
            new Client().Main();
            // output

            // Client: Testing client code with the first factory type...
            // The result of the product B1.
            // The result of the B1 collaborating with the (The result of the product A1.)

            // Client: Testing the same client code with the second factory type...
            // The result of the product B2.
            // The result of the B2 collaborating with the (The result of the product A2.)
        }
    }
}
